FVL WD65
Telecentric Lens for 400K-pixel camera
Telecentric lens VGA camera. With 65mm of WD, it’s ideal for the integration into compact equipment.
Selectable from three types: straight, L-shape and with coaxial lighting port.
Selectable from three types: straight, L-shape and with coaxial lighting port.
What’s New
Model (Coaxial) | FVL-0.5X-65D-CA | FVL-0.8X-65D-CA | FVL-1X-65D-CA | FVL-2X-65D-CA | FVL-3X-65D-CA | FVL-4X-65D-CA | FVL-5X-65D-CA | FVL-8X-70D-CA |
Model (Straight) | FVL-0.5X-65-CA | FVL-0.8X-65-CA | FVL-1X-65-CA | FVL-2X-65-CA | FVL-3X-65-CA | FVL-4X-65-CA | FVL-5X-65-CA | |
Model (L-type) | FVL-0.5X-65DL-CA | FVL-0.8X-65DL-CA | FVL-1X-65DL-CA | FVL-2X-65DL-CA | FVL-3X-65DL-CA | FVL-4X-65DL-CA | FVL-5X-65DL-CA | FVL-8X-70DL-CA |
| Magnification | 0.5X | 0.8X | 1.0X | 2.0X | 3.0X | 4.0X | 5.0X | 8.0X |
| Working distance | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 70 mm |
| Focal depth | 1.7 mm | 1.3 mm | 920 µm | 326 µm | 197 µm | 131 µm | 97 µm | 60 µm |
| Distortion | Less than 0.02 % | Less than 0.2 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.4 % |
| Resolution LP/mm | 125 LP/mm | 120 LP/mm | 120 LP/mm | 178 LP/mm | 208 LP/mm | 238 LP/mm | 238 LP/mm | 244 LP/mm |
| Resolution power | 8.0 µm | 8.3 µm | 8.3 µm | 5.6 µm | 4.8 µm | 4.2 µm | 4.2 µm | 4.1 µm |
| N.A. | 0.046 | 0.04 | 0.04 | 0.06 | 0.07 | 0.08 | 0.08 | 0.081 |
| F number | 5.4 | 10.1 | 11.5 | 16.3 | 22.2 | 26.2 | 30.2 | 48.2 |
| Camera mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount |
| Equivalent sensor | Under 1/2 inch camera | Under 1/2 inch camera | Under 1/2 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera |
| Weight (Coaxial) | 100 g | 112 g | 82 g | 48 g | 50 g | 54 g | 58 g | 100 g |
| Weight (Straight) | 94 g | 106 g | 76 g | 42 g | 44 g | 48 g | 52 g | |
| Weight (L-type) | 100 g | 112 g | 82 g | 48 g | 50 g | 54 g | 58 g | 100 g |

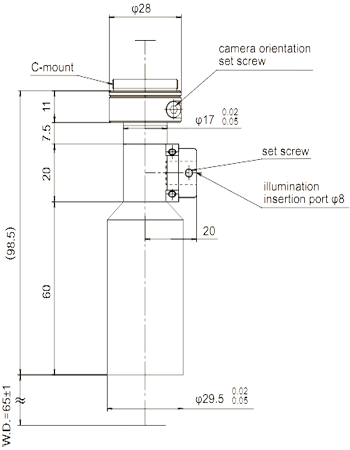

FVL-0.5x-65D-CA
Magnification:
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
100g
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
100g
FVL-0.8x-65D-CA
Magnification:
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
112g
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
112g
FVL-1.0x-65D-CA
Magnification:
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
82g
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
82g
FVL-2.0x-65D-CA
Magnification:
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
FVL-3.0x-65D-CA
Magnification:
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
50g
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
50g
FVL-4.0x-65D-CA
Magnification: 4x
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
54g
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
54g
FVL-5.0x-65D-CA
Magnification: 5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
58g
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
58g
FVL-8x-70D-CA
Magnification:
8x
Working Distance:
70
Focal depth:
60μm
Distortion:
Less than 0.4%
Resolution LP/mm:
244LP /mm
Resolution power:
4.1μm
N.A.:
0.081
F number:
48.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
100g
8x
Working Distance:
70
Focal depth:
60μm
Distortion:
Less than 0.4%
Resolution LP/mm:
244LP /mm
Resolution power:
4.1μm
N.A.:
0.081
F number:
48.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
100g

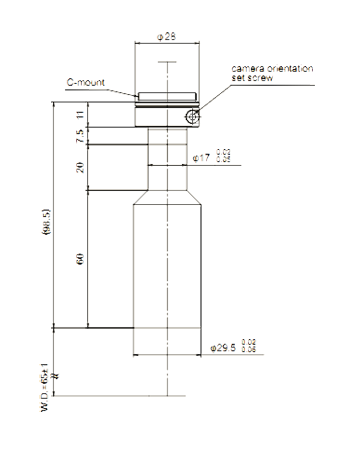

FVL-0.5x-65-CA
Magnification:
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
94g
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
94g
FVL-0.8x-65-CA
Magnification:
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
106g
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
106g
FVL-1.0x-65-CA
Magnification:
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
76g
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
76g
FVL-2.0x-65-CA-
Magnification:
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
42g
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
42g
FVL-3.0x-65-CA
Magnification:
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
44g
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
44g
FVL-4.0x-65-CA
Magnification: 4x
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
FVL-5.0x-65-CA
Magnification:
5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
52g
5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
52g
