PS-888
PS888 Compound Inspection Microscopes
Enhanced Version of our M Plan APO objective
lens that are compatible with the special video
microscope, the MS-200-TCD33.
What’s New
M. Plan APO 2.5X HR
Lorem ipsum dolor sit amet consectetur adipiscing elit mus mi, proin sociis commodo penatibus ac neque non…
M. Plan APO 5X HR
Proin nibh rutrum dictum sed orci volutpat parturient odio aenean dictumst ornare volutpat
M. Plan APO 1.5HR
Lectus mauris vivamus quam risus cum iaculis cubilia senectus duis torquent himenaeos magna sociis…
| Model | Magnification | Working Distance | N.A. |
|---|---|---|---|
| PS-888 | - | - | - |
PS-888
Features
- This microscope PS-888 is ideal for probe station in the semiconductor and LCD assembly status.
- This microscope provides high resolution at high magnification and its compact shape delivers good performances and stability when integrated to the instrument.
- Options such as observation for Bright Field, Differential Interference Contrast (DIC) and polarized filters are provided to this microscope unit to ensure high performance.
- This microscope is designed for long working distance with large N.A.
| Main body: Image lens |
1x(486~656)nm 2x(486~656)nm Turret switching type |
| Main body: Laser | – |
| Objective lens | Infinity correction objective lens (M.PlanAPO lens) |
| Weight | 7kg or less |
| Focus unit: Weight-resistant | 45kg |
| Focus unit: Operation |
Coarse motion: 1 revolution/4mm Micromotion: 1 revolution/0.1mm Manual 1-axis coarse micromotion |

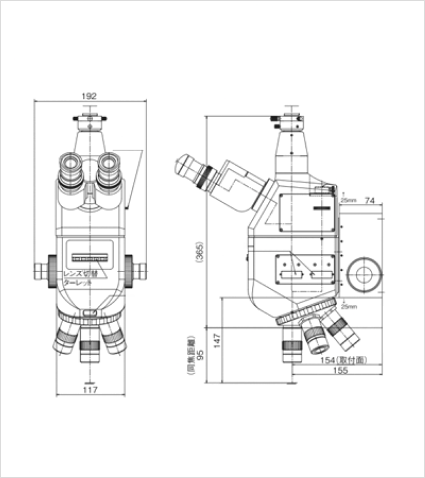

| External dimensions | 192(W) × 352(D) × 365(H) mm |
