BG202C[F]

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Pixel Resolution:
1628 x 1236
Pixel Size (um):
4.40 x 4.40
Frame Rate (fps):
20
Sensor format:
1/1.8 Type
Scan area (mm):
7.16 x 5.44
Aspect Ratio:
4: 3
Standard sensitivity:
725lx, F5.6, 1/20s
Min. sensitivity:
F1.4, Gain +18dB, Video level 50%, 3lx
Gamma:
γ=1.00 to 0.45 (factory setting : γ=1.00)
Gain:
MANUAL, AGC (factory setting: MANUAL)
Power requirement:
PoE (Power over Ethernet IEEE802.3af compliant) or DC+12V ±10% (ripple 100 mV(p-p) or less)
Power consumption:
PoE:4.0W Max, DC12V:3.4W Max
Color filter:
RGB primary color mosaic-on-tip color filter
Lens Mount:
C-mount
Interface:
Gigabit Ethernet IEEE802.3ab (1000BASE-T) conformity

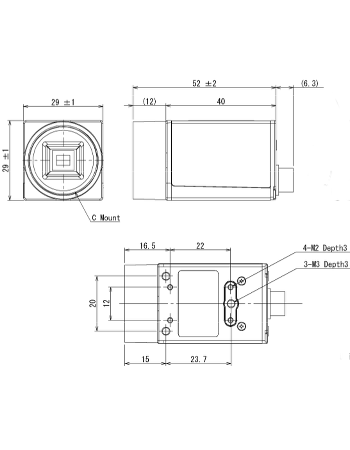

Dimentions(mm):
29(W) x 29(H) x 40(D) (Not including protrusion)
Weight:
Approximately 53g
