BG205(MC-CS/MCF-CS)
Pixel Resolution:
2048(H) x 1088(V) 2M
Pixel Size (um):
5.5 x 5.5
Frame Rate (fps):
50
Sensor format:
2/3 GS-CMOS
Scan area (mm):
11.26(H) x 5.98(V)
Aspect Ratio:
2:1
Standard sensitivity:
2300lx (F11, 1/50s) 2900lx (F11, 1/50s)
Min. sensitivity:
3lx (F1.4, Gain +18dB, Video level 50%) 4lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5% to +25%
Gamma:
1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
PoE/DC12V
Power consumption:
PoE: 3.1W Max / DC12V: 2.6W Max
Video format:
GVSP_PIX_BAYGR8:BayerGR8 8bit / GVSP_PIX_BAYRG8:BayerRG8 8bit / GVSP_PIX_BAYBG8:BayerBG8 8bit / GVSP_PIX_BAYGB8:BayerGB8 8bit
Color filter:
RGB primary color mosaic-on-tip color filter
Electronic Shutter Method:
global shutter
Sensor Vendor:
Sony Corporation
Lens Mount:
CS mount

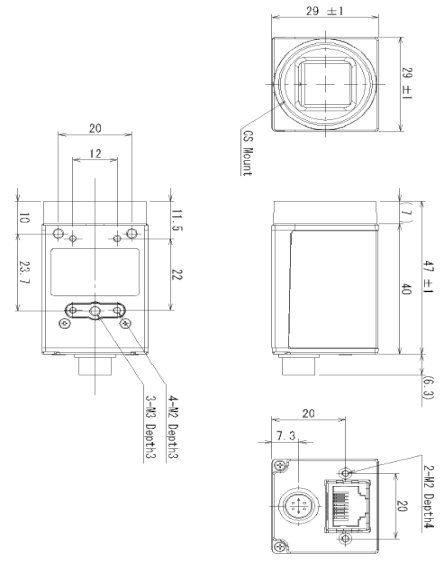

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 40(D)
Weight:
approx.50g
