DU1207MG

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Pixel Resolution:
4096 (H) x 3000(V) 12.3M
Pixel Size (um):
3.45 x 3.45
Frame Rate (fps):
32
Sensor format:
1.1 type GS-CMOS
Scan area (mm):
14.13 x 10.35
Standard sensitivity:
860 lx, F5.6, 1/32 s
Min. sensitivity:
2 lx, F1.4(Gain +24 dB, Video level 50%)
Gain:
MANUAL: 0 to +24dB (factory setting: 0dB)
Power consumption:
4.0W
Interface:
USB 3.0 (Only SuperSpeed is supported)

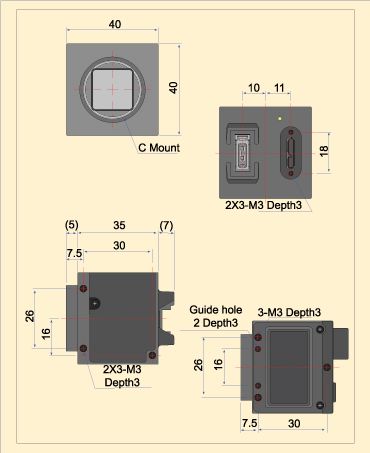

Dimentions(mm):
40(W)x40(H)x35(D) mm (Not including protrusion)
Weight:
90g



Model DU1207MG
B/W or COLOR B/W
Pixel 12.3M
Interface USB 3. (Only SuperSpeed is supported)
Imager 1.1 type GS-CMOS (IMX253)
Resolution 4,096 x 3,000
Frame Rate Mono 8 : 32 fps
Mono 10 / 12 : fps
Pixel Size 3.45µm (H) x 3.45µm (V)
Electronic Shutter MANUAL: 30 µs to 16 s,
Random Trigger Shutter
Color Filter ---
Standard Sensitivity 860lx, F5.6, 1/32 s
Minimum Sensitivity 2 lx, F1.4(Gain +24 dB,
Video level 50%)
Gamma γ=1.0 (OFF) to 0.45
Gain MANUAL: 0 to +24dB, AGC
White Balance ---
Sync System Internal synchronization
Image Output Format Mono 8 bit all pixel readout/
Scalable/Binning/Decimation/
Reverse (H/V)
Power Supply DC+5 V ±5%
(from USB connector)
Power Consumption 4.0W
Lens Mount C-Mount
Dimensions 40(W) x 40(H) x 35(D) mm
(Not including protrusion)
Mass 90g
Operation Assurance Temperature:-5°C to 45°C,
Humidity:10% to 90% (no condensation)
Conformity CE, FCC, RoHS, WEEE, USB3 Vision,
GenICam, IIDC2
