NUV Plan APO
High-resolution objectives for Near UV applications with high transmission wavelengths down to 355nm.
Full specs are available for download on the datasheets.
NUV Plan APO
NUV Plan APO

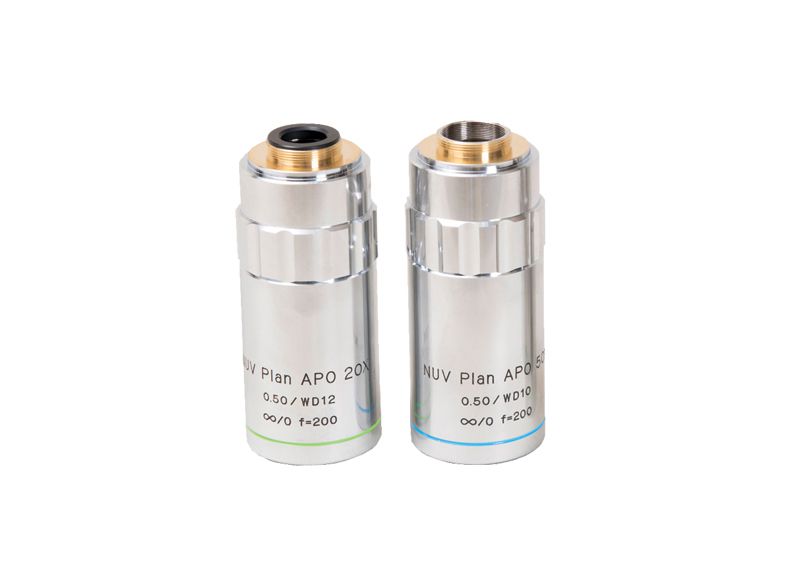

These objective lens extends that range of the M Plan APO objectives into UV and have a super long working distance.
The focal plane is corrected for both Bright Field and Near UV (355nm), meaning that both wavelengths will be in focus.
Designed for high transmission at Near UV wavelength. Ideal for repairing semiconductor or LCD circuits,
and processing thin film by attaching these lenses to microscope with YAG laser unit.
| Model | Magnification | Working Distance | N.A. | RP (μm) | DOF (μm) | Magnification | ||
|---|---|---|---|---|---|---|---|---|
|
|
50x
|
10.0
|
0.5
|
0.6
|
1.1
|
|
|
|
|
|
20x
|
12
|
0.5
|
0.6
|
1.1
|
|
|
