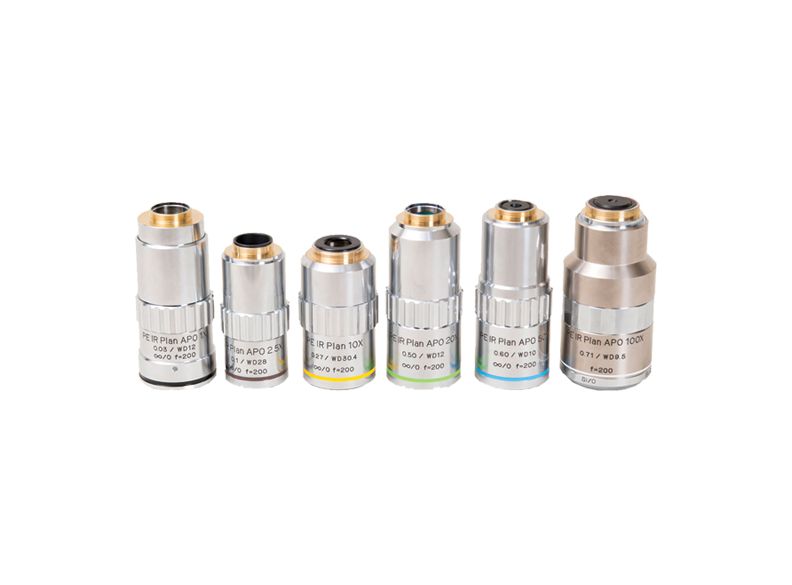

PE IR
High-resolution objectives lens that are for near infrared wavelengths up to 1600nm. This series of objective lens has a long working distance with high spectral transmission percentage.
Full specs are available for download on the datasheets.
PE IR
PE IR
Ideal for backside inspection of wafers and photo emission applications.
20X and 50X can be attached to PS-888L microcope,
and used for laser repair with YAG laser(WAVELENGTH 1064NM).
LCD and Silicon thickness corrected versions available. Applications include:
- Laser Marking
- Laser Cutting
- Photo emission detection
| Model | Magnification | Working Distance | N.A. | RP (μm) | DOF (μm) | ||
|---|---|---|---|---|---|---|---|
|
|
100x
|
9.5
|
0.71
|
0.9
|
0.9
|
|
|
|
|
50x
|
10.0
|
0.6
|
1.1
|
1.5
|
|
|
|
|
20x
|
12
|
0.5
|
1.3
|
2.2
|
|
|
|
|
2.5x
|
28
|
0.1
|
6.7
|
55
|
|
|
|
|
1x
|
12
|
0.03
|
22.4
|
611
|
|
|
|
|
10x
|
30.7
|
0.27
|
2.5
|
7.5
|
|
