FVL HR
Compact high-resolution telecentric lenses for 2 MP cameras.
More information available upon request.
FVL HR
FVL HR

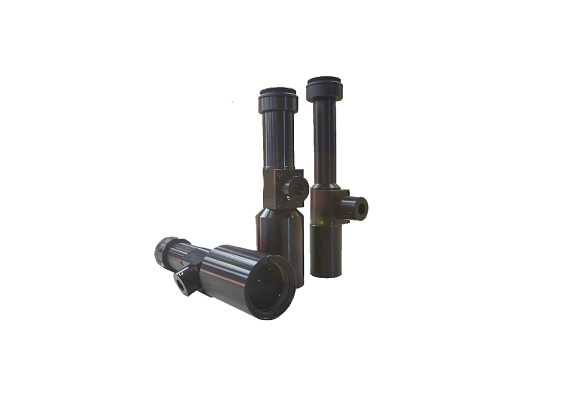

Telecentric lens for 2 megapixel cameras. Designed for high - resolution alignment and measurement. (Some models are compatible with 5 megapixel cameras). The lens works at WD 65mm and over 100mm.
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|
Coaxial Illumination Port Version
|
4x
|
0.096
|
21.2
|
140
|
|
|
|
|
Coaxial Illumination Port Version
|
4x
|
0.096
|
21
|
110
|
|
|
|
|
Coaxial Illumination Port Version
|
2x
|
0.085
|
11.8
|
110
|
|
|
|
|
Coaxial Illumination Port Version
|
1.5x
|
0.063
|
11.9
|
110
|
|
|
|
|
Coaxial Illumination Port Version
|
4x
|
0.125
|
15.8
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
2x
|
0.075
|
13.3
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
1x
|
0.049
|
10.1
|
65
|
|
|
|
|
Coaxial Illumination Port Version
|
0.5x
|
0.028
|
8.8
|
106
|
|
| Model | Type | Magnification | N.A. | Eff # | Working Distance | ||
|---|---|---|---|---|---|---|---|
|
|
Straight Type
|
4x
|
0.096
|
21.2
|
140
|
|
|
|
|
Straight Type
|
4x
|
0.096
|
21
|
110
|
|
|
|
|
Straight Type
|
2x
|
0.085
|
11.8
|
110
|
|
|
|
|
Straight Type
|
1.5x
|
0.063
|
11.9
|
110
|
|
|
|
|
Straight Type
|
4x
|
0.125
|
15.8
|
65
|
|
|
|
|
Straight Type
|
2x
|
0.075
|
13.3
|
65
|
|
|
|
|
Straight Type
|
1x
|
0.049
|
10.1
|
65
|
|
|
|
|
Straight Type
|
0.5x
|
0.028
|
8.8
|
106
|
|
