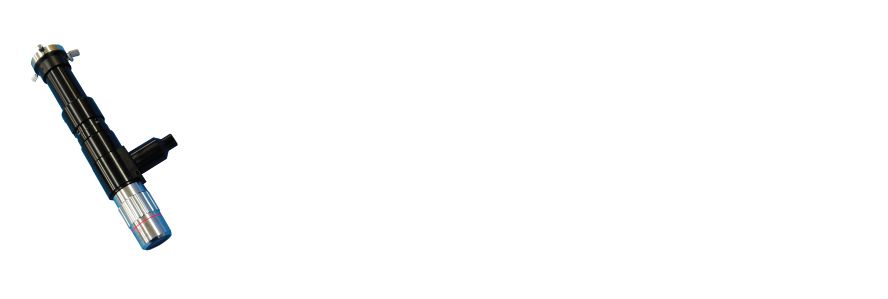

MSZ-APO

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.


TECHNICAL SPECIFICATIONS



MSZ-APO zoom tube spec

Magnification: 0.75X - 4.5X

Working Distance: 92mm

Focal Depth: 1.8mm - 0.13mm

Resolution LP/mm: 86LP/mm - 204LP/mm

Resolution: 11.6μm - 4.9μm

NA: 0.029 - 0.069

F number: 12.8 - 32.6

CCD Size: under 1/2 inch cameraCamera Mount: C-MOUNT



Data of MSZ-APO with Special Objective Lenses

Special Objective Lens

Magnification

WD

Total Magnification

Size

OB-05-M26

0.5X

194.5mm

0.36-2.2X

φ33x50mm

OB-075-M26

0.75X

125mm

0.58-3.5X

φ33x13mm

OB-10-M26

1X

90mm

0.75-4.5X

φ33x13mm

OB-15-M26

1.5X

62mm

1.04-6.2X

φ33x11mm

OB-20-M26

2X

39.8mm

1.45-8.7X

φ33x15mm
