USB 3.0

This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:

  • Has bandwidth in excess of 440 MByte/sec.
  • Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

This camera series has a Bulk trigger and also sequential trigger modes. The modes allow for capture of multiple frames in rapid succession, each using different gain,exposure, ROI.

More features include:

  • Features external and software trigger options
  • Abundant sample code
  • Unified SDK for USB 3.0
  • Color models have built in color processing
  • Equipped with all pixel data readout CCD

USB 3.0

Pixel Resolution:
659(H) x 494(V) 0.3M
Pixel Size (um):
7.4 x 7.4
Frame Rate (fps):
125
Sensor format:
1/3 CCD
Scan area (mm):
4.88 x 3.66
Aspect Ratio:
4:3
Standard sensitivity:
1700lx (F5.6, 1/125s)
Min. sensitivity:
7lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to 25%
Gamma:
y=1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
DC5V
Power consumption:
2.6 W
Image output format:
10 bits/ 8 bits
Sensor Vendor:
Sony Corporation
Lens Mount:
C mount

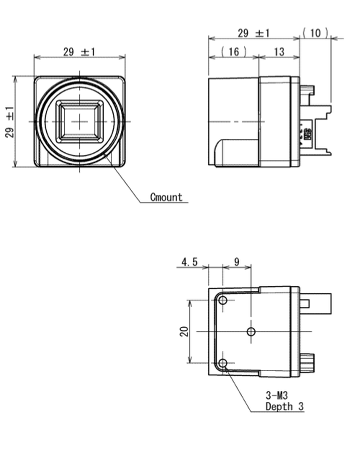

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 13(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Weight:
27g
