BU205M
USB 3.0
This series of cameras has quality color and B/W, CCD and CMOS cameras for easy integration into vision systems. It features fast USB 3.0 with a compact and lightweight design. Other features include:
- Has bandwidth in excess of 440 MByte/sec.
- Bulk trigger and sequential trigger modes allow capture of multiple frames in rapid succession, each using different gain,exposure, ROI
- Features external and software trigger options
- Abundant sample code
- Unified SDK for USB 3.0
- Color models have built in color processing
- Equipped with all pixel data readout CCD
USB 3.0
This camera series has a Bulk trigger and also sequential trigger modes. The modes allow for capture of multiple frames in rapid succession, each using different gain,exposure, ROI.
More features include:
- Features external and software trigger options
- Abundant sample code
- Unified SDK for USB 3.0
- Color models have built in color processing
- Equipped with all pixel data readout CCD
USB 3.0
Pixel Resolution:
2048(H) x 1088(V) 2M
Pixel Size (um):
5.5 x 5.5
Frame Rate (fps):
170
Sensor format:
2/3 GS-CMOS
Scan area (mm):
11.26 x 5.98
Aspect Ratio:
2:1
Standard sensitivity:
3800lx (F8,1/200s)
Min. sensitivity:
8lx (F1.4, Gain x8, Video level 50%)
Black Level:
-25% to +25%
Gamma:
1.0 to 0.45
Gain:
x0 to x8
Power requirement:
DC5V
Power consumption:
2.7W
Image output format:
Mono 8 bits
Electronic Shutter Method:
global shutter
Sensor Vendor:
Sony Corporation
Lens Mount:
C mount

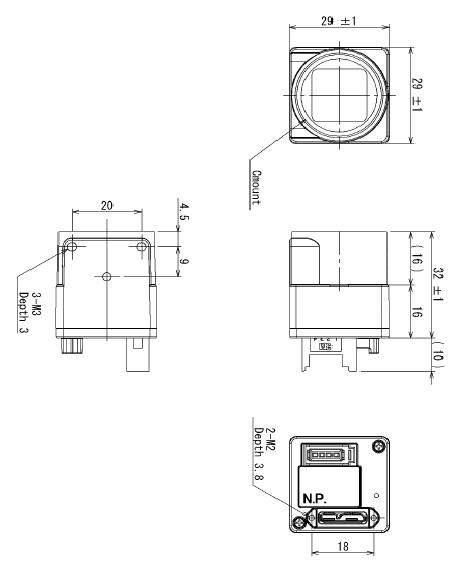

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 16(D)
Highspeed response:
Yes
Event notifications:
Yes
Bus synchronization:
Yes
Bulk trigger:
Yes
Image buffer:
Yes
Sequential shutter:
Yes
Weight:
32g
