FVL 120

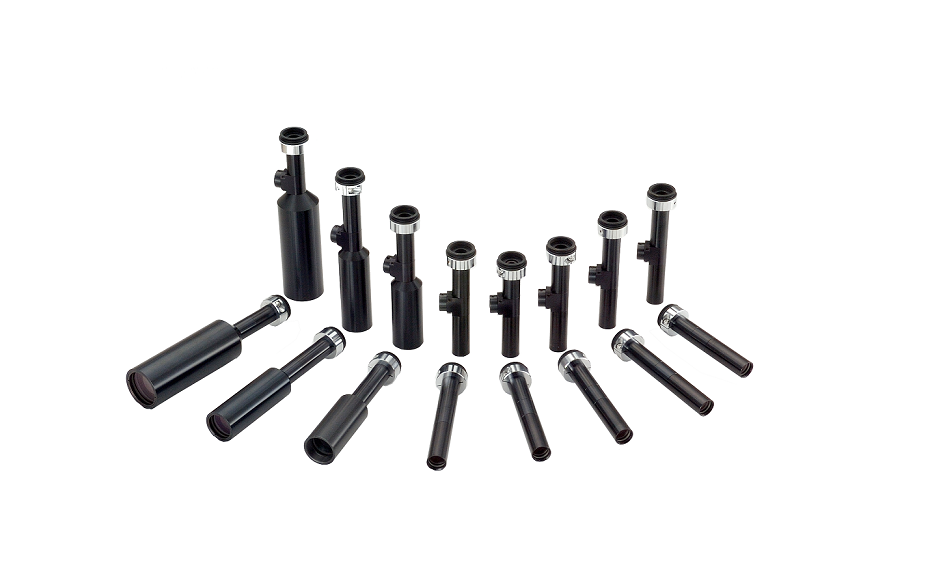

Compact telecentric lenses with 120mm working distances for φ 17 camera mount.
More information available upon request.
FVL 120
FVL 120
These lens use a C - Mount adapter that allows for total adjustment of camera orientation. There are different varieties of illumination port styles and magnifications.
| Model | Type | Magnification | N.A. | Eff # | Max. Dist. | Working Distance | RP (μm) | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
Straight Type
|
0.5x
|
0.027
|
9.3
|
0.10%
|
120
|
12.5
|
|
|
|
|
Straight Type
|
0.75x
|
0.028
|
13.3
|
0.10%
|
120
|
11.8
|
|
|
|
|
Straight Type
|
1x
|
0.03
|
16.7
|
0.10%
|
120
|
11.0
|
|
|
|
|
Straight Type
|
2x
|
0.036
|
32.5
|
0.10%
|
120
|
9.3
|
|
|
|
|
Straight Type
|
3x
|
0.04
|
36.3
|
0.10%
|
120
|
8.3
|
|
|
|
|
Straight Type
|
4x
|
0.043
|
43.9
|
0.10%
|
120
|
7.8
|
|
|
|
|
Straight Type
|
5x
|
0.045
|
52.4
|
0.10%
|
120
|
7.4
|
|
|
|
|
Straight Type
|
6x
|
0.048
|
62.2
|
0.10%
|
120
|
7.0
|
|
| Model | Type | Magnification | N.A. | Eff # | Max. FOV (mm) | Max. Dist. | Working Distance | RP (μm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
Coaxial Illumination Port Version
|
0.19x
|
0.017
|
5.5
|
|
0.01%
|
100
|
2.9
|
|
|
|
|
Coaxial Illumination Port Version
|
0.75x
|
0.028
|
13.3
|
11.7 x 8.8
|
0.10%
|
120
|
11.8
|
|
|
|
|
Coaxial Illumination Port Version
|
1x
|
0.03
|
16.7
|
8.8 x 6.6
|
0.10%
|
120
|
11.0
|
|
|
|
|
Coaxial Illumination Port Version
|
2x
|
0.036
|
32.5
|
4.4 x 3.3
|
0.10%
|
120
|
9.3
|
|
|
|
|
Coaxial Illumination Port Version
|
3x
|
0.04
|
36.3
|
2.9 x 2.2
|
0.10%
|
120
|
8.3
|
|
|
|
|
Coaxial Illumination Port Version
|
4x
|
0.043
|
43.9
|
2.2 x 1.7
|
0.10%
|
120
|
7.8
|
|
|
|
|
Coaxial Illumination Port Version
|
5x
|
0.045
|
52.4
|
1.8 x 1.3
|
0.10%
|
120
|
7.4
|
|
|
|
|
Coaxial Illumination Port Version
|
6x
|
0.048
|
62.2
|
1.5 x 1.1
|
0.10%
|
120
|
7.0
|
|
