FXL

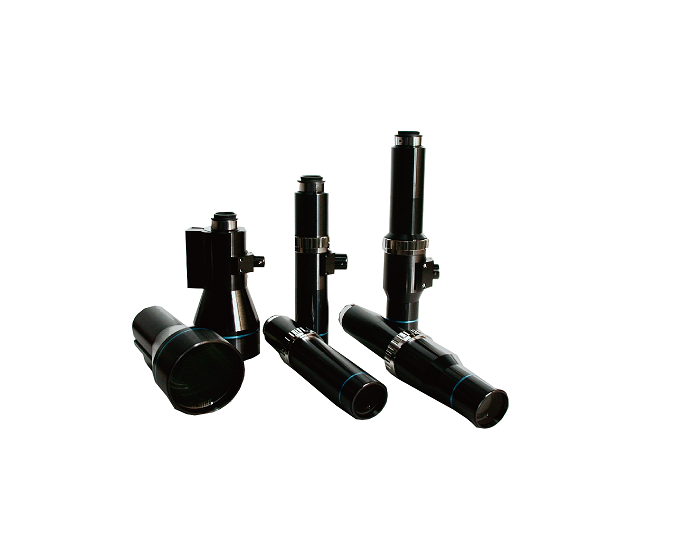

High-resolution telecentric lenses for 5 MP cameras. The lens have a working distance of 65mm and +100mm.
More information available upon request.
FXL
FXL
These telecentric lens are compatible with 2 and 5 megapixel cameras. They are designed with a high - resolution alignment and measurement.
| Model | Type | Magnification | N.A. | Eff # | Max. FOV (mm) | Max. Dist. | Working Distance | RP (μm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
Straight Type
|
0.19x
|
0.017
|
6
|
46.4 x 34.7
|
0.02%
|
120
|
21.0
|
|
|
|
|
Straight Type
|
1x
|
0.072
|
7
|
8.8 x 6.6
|
0.05%
|
120
|
5.2
|
|
|
|
|
Straight Type
|
2x
|
0.13
|
8
|
4.4 x 3.3
|
0.05%
|
100
|
2.9
|
|
| Model | Type | Magnification | N.A. | Eff # | Max. FOV (mm) | Max. Dist. | Working Distance | RP (μm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
Coaxial Illumination Port Version
|
0.19x
|
0.017
|
6
|
46.4 x 34.7
|
0.02%
|
110
|
21.0
|
|
|
|
|
Coaxial Illumination Port Version
|
1x
|
0.072
|
7
|
8.8 x 6.6
|
0.05%
|
120
|
5.2
|
|
|
|
|
Coaxial Illumination Port Version
|
2x
|
0.13
|
8
|
4.4 x 3.3
|
0.05%
|
100
|
2.9
|
|
