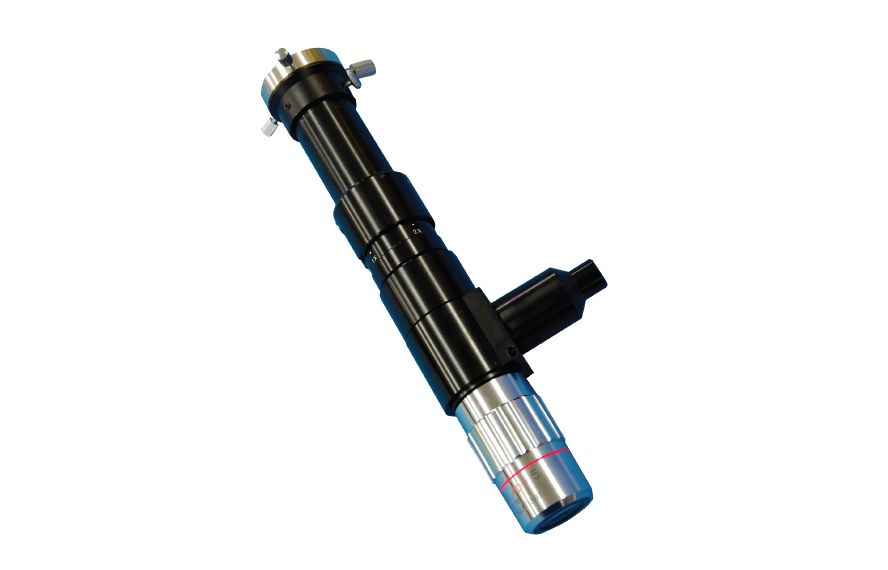

M Plan APO Zoom Tube

High Magnification Compact Zoom Lens

6X zoom lens inside the tube



M Plan APO Zoom Tube

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

M Plan APO Zoom Tube

The MSZ-APO zoom lens has an internal zoom 6X          ( 0.75X - 4.5X ). This zoom lens can be used with Seiwa Optical's long-working destance, M. Plan APO objective lens series. In addition, Seiwa Optical prepares special conversion objective lenses of 0.5X, 0.75X, 1X, 1.5X and 2X (please see table shown below) which convert the zoom magnification of MSZ-APO zoom lens to use an standalone.

 Data of MSZ-APO with M.PLAN APO Objective Lenses

M.PlanAPO

Total Mag

WD

Resolution

N.A

2.5X

0.9-5.4X

32.5mm

9.6-5.6μm

0.035-0.06

5X

1.8-10.8X

36.2mm

4.7-2.1 μm

0.072-0.16

10X

3.6-21.6X

38.9mm

2.4-1.5 μm

0.14-0.23

20X

7.2-43.2X

22.2mm

1.2-1.0 μm

0.28-0.35

50X

18-108X

18.3mm

0.8 μm

0.4

Model Magnification Working Distance N.A. Magnification
0.75x - 4.5x
92
0.029 - 0.069
